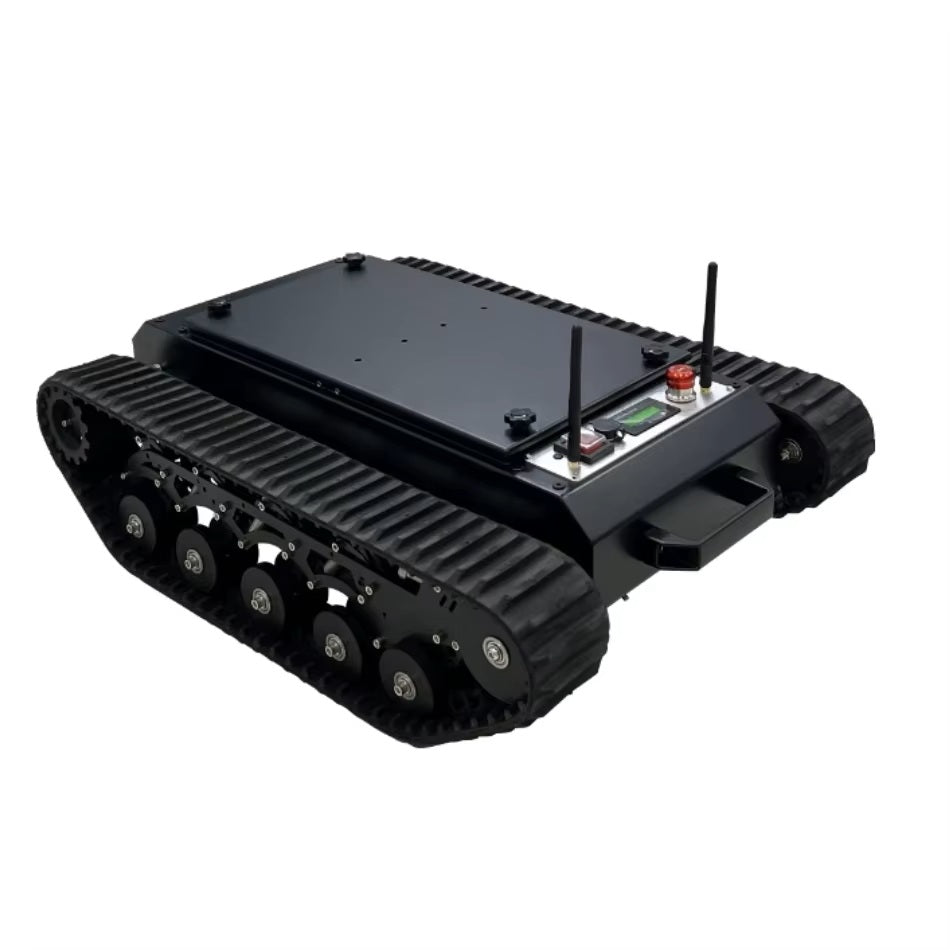

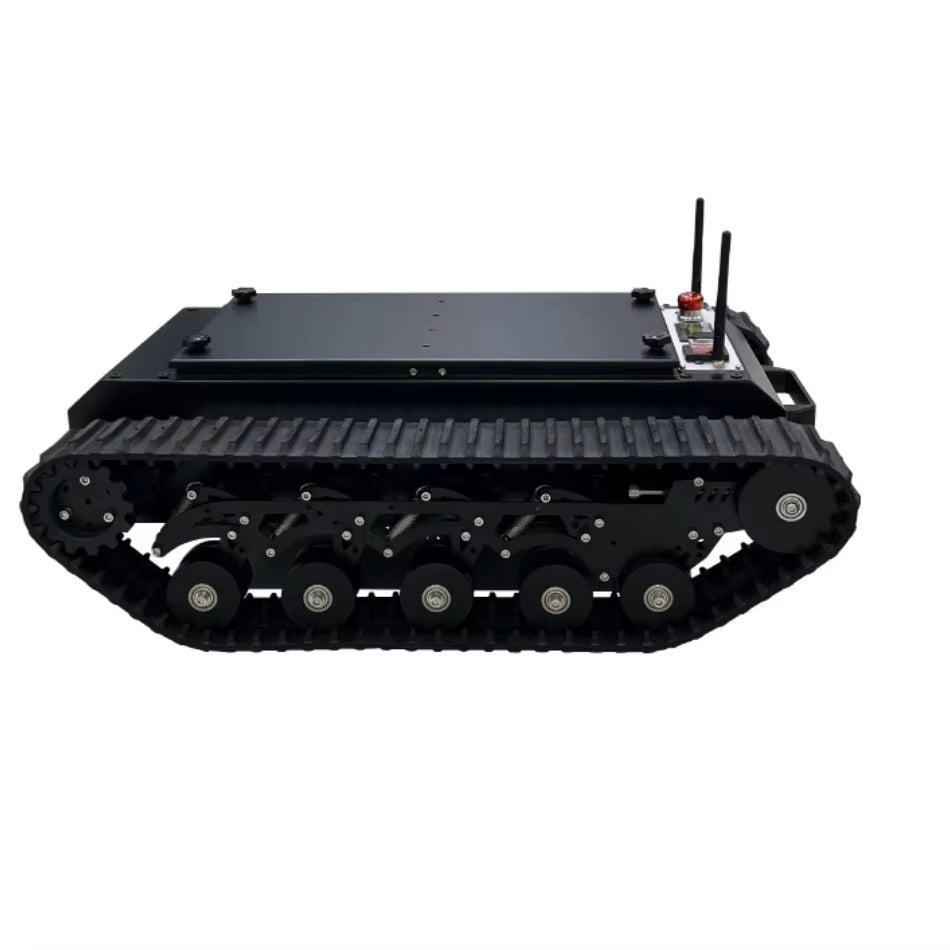

Manufacturer Tracked Chassis Robot Crawler tank Platform High Speed Electric Vehicle Chassis Ros Track Robot
$4,400.00
Shipping calculated at checkout.
|
Be self-possessed
|
120kg
|
|
Maximum load
|
65kg
|
|
Rated power
|
2*785W
|
|
Rated voltage
|
48V
|
|
Maximum climb
|
30°
|
|
Track material
|
High quality rubber track embedded Kevlar fiber tension layer
|
|
Reduction ratio
|
01:14.9
|
|
Operating speed
|
0-6.2Km/h
|
|
Track width
|
150mm
|
|
Obstacle clearance height
|
0-125mm
|
|
Damping system
|
A total of 8 independent oil pressure damping shock absorbers
|
|
Control system
|
2.4Ghz remote control +STM32 main control board + brushless motor driver, etc
(Provide serial communication, support ROS robot development, unmanned vehicle parking machine control, automatic driving and
other secondary development) |
|
Charging time
|
Standard 4.5-5 hours
|
|
Class of protection
|
IP54 The IP64 can be upgraded
|
