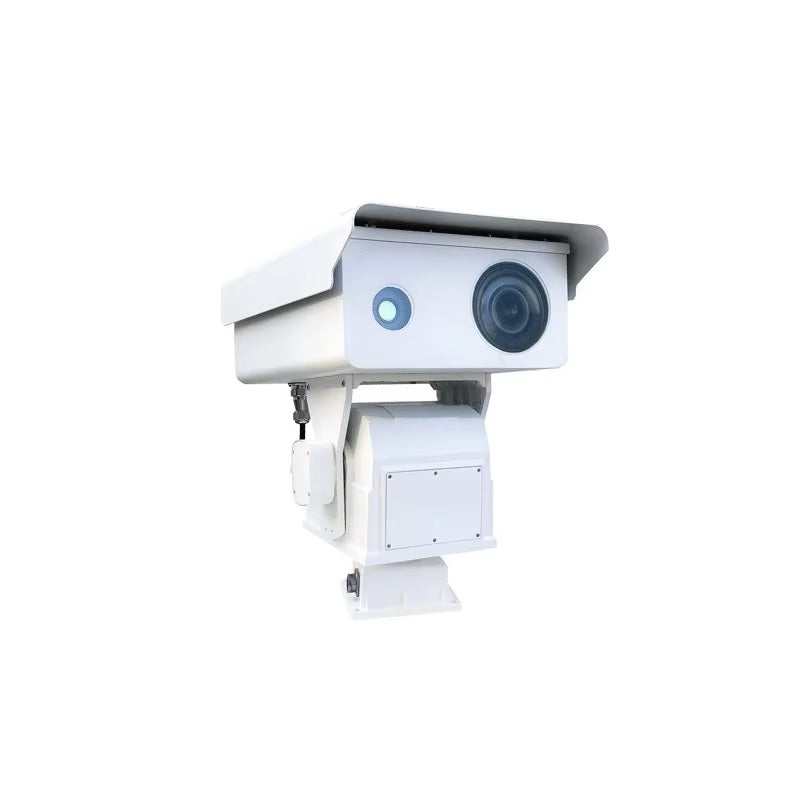

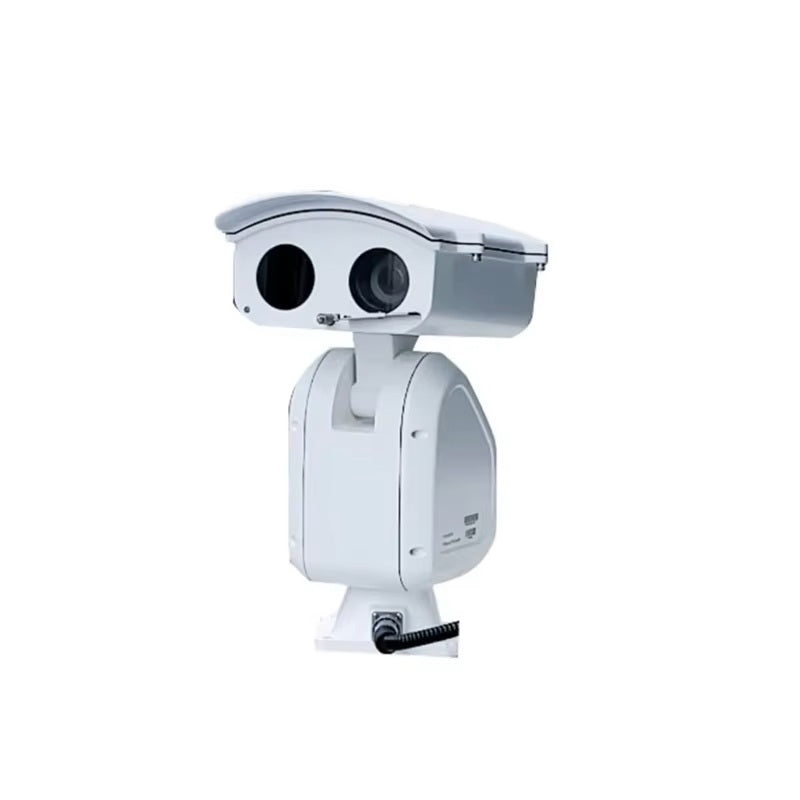

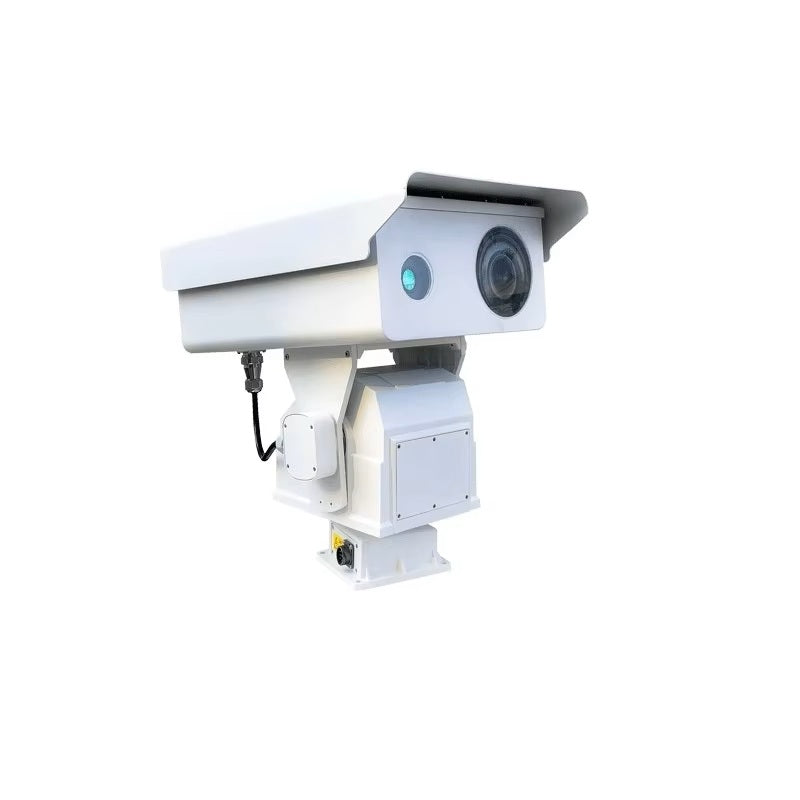

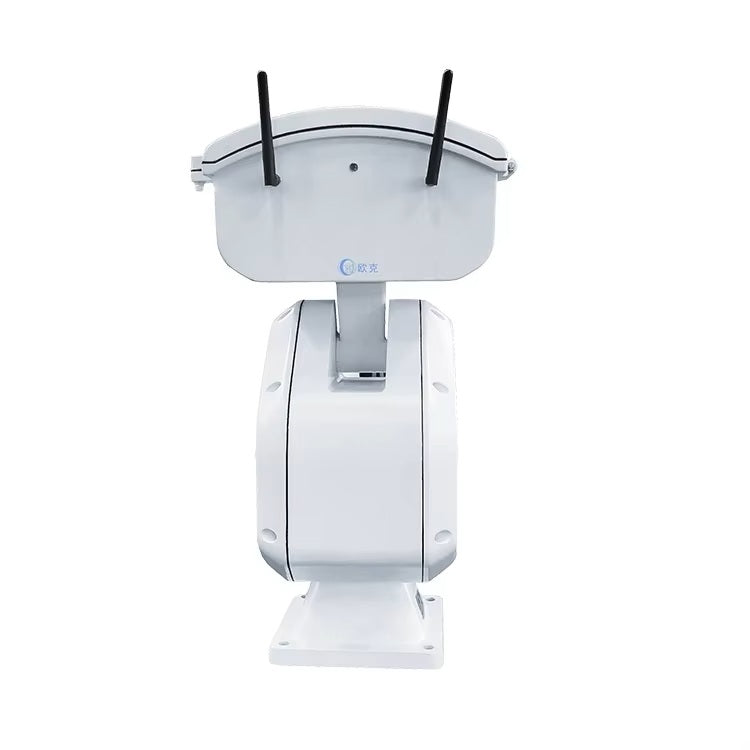

Hot Selling Human Motion Tracking Long Range Thermal Camera Laser Camera
|
Product Model |
OK-PJ150GR |
|||
|
Camera and Lens |
Lens |
X30 |
X30 Starlight Level |
310MMTele |
|
Minimum illumination |
Color0.002 lux black and white0.0002 lux |
Color0.001 lux black and white0.0001 lux |
Color0.01 lux black and white0.001 lux |
|
|
Imaging device lens |
1/2.8"progressive scanCMOS |
1/3"progressive scanCMOS |
1/2.8"progressive scanCMOS |
|
|
focal length |
f=4.5mm(wide-angle end) ~135mm(Distal) |
f=4.6mm(wide-angle end) ~165.6mm(Distal) |
f=8mm(wide-angle end) ~310mm(Distal) |
|
|
wide dynamic |
Support |
|||
|
effective pixel |
1920(H)×1080(V) |
|||
|
Movement adjustment parameters |
White BalanceAWC/ATWAutomatic Gain ControlAGCBacklight compensationBLC |
|||
|
signal-to-noise ratio |
52db |
|||
|
Electronic shutter |
Automatic; Manual1/1-1/30000s |
|||
|
PTZFunction |
Horizontal speed |
0.1°~150°/s(belt);0.1°~40°/s(Turbo) |
||
|
Vertical speed |
0.1°~60°/s(belt);0.1°~40°/s(Turbo) |
|||
|
Horizontal angle |
360 ° continuous |
|||
|
Vertical Angle |
-90°~ 40° |
|||
|
Number of preset bits |
255One |
|||
|
Linear line sweep |
8Article, scanning speed 8 adjustable |
|||
|
Cruise Scan |
8Article, each can set 255 preset points |
|||
|
self-learning |
8Article, each recording1024PTZ |
|||
|
Network
|
video compression |
H.265/H.264 |
||
|
Video Frame Rate |
25/30fps |
|||
|
Video Resolution |
720P/1080P |
|||
|
Network Protocol |
TCP,UDP,HTTP,RTP,RTCP,RTSP,FTP,NTP,ICMP,PPP |
|||
|
Lordcode stream |
1920×1080 / 1280×720 |
|||
|
Substream |
720×576 / 352×288 / 176×144 |
|||
|
SD Card |
Automatic/Manual video recording, support TF card |
|||
|
Audio Coding |
G.711 |
|||
|
Interface |
RS485 control interface |
SupportPELCO-P and PELCO-D (can be added) protocols |
||
|
Network |
10/100Mnetwork adaptive,RJ45Adapter |
|||
|
GENERAL SPECIFICATIONS |
Temperature |
-40 - 70 |
||
|
Humidity |
0 ~ 90% (non-condensing) |
|||
|
Protection level |
IP66 |
|||
|
Weight |
17kg |
|||
|
Power |
AC24V |
|||
|
Power |
90W(Infrared lamp, heater on) |
|||
