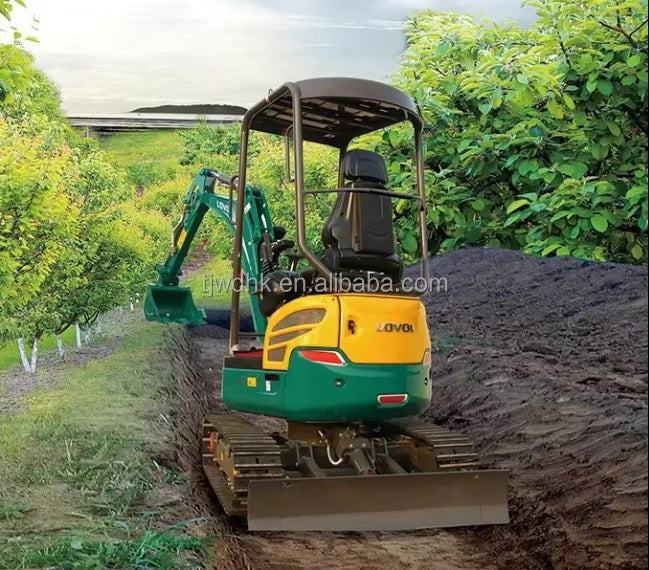

Excellent Performance 1.8 Tons Mini Crawler Excavator with High Working Efficiency Crawler Mini Excavator
Excellent Performance 1.8 Tons Mini Crawler Excavator with High Working Efficiency Crawler Mini Excavator
Regular price
$23,800.00 USD
Regular price
Sale price
$23,800.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
|
Item
|
Unit
|
Specifications
|
|
Rated Power
|
kW/rpm
|
11.5/2400
|
|
Bucket Capacity
|
m³
|
0.04
|
|
Operating Weight
|
kg
|
1810
|
|
Engine Model
|
/
|
3TNV70-PFN
|
|
Number of Cylinders
|
/
|
3
|
|
Max. Torque/Speed
|
N·m/rpm
|
48/1600
|
|
Displacement
|
L
|
0.854
|
|
Bucket Digging Force
|
kN
|
15.2
|
|
Arm Digging Force
|
kN
|
8.5
|
|
Max. Traction Force
|
kN
|
13.5
|
|
Max. Walking Speed
|
km/h
|
3.7
|
|
Min. Walking Speed
|
km/h
|
1.9
|
|
Rotary Speed
|
r/min
|
9.0
|
|
Gradeability
|
°
|
30°
|
|
Ground Pressure
|
KPa
|
29
|
|
Max. Main Pump Flow
|
L/min
|
2X17.2+10.8
|
|
Main Safety Valve Pressure
|
MPa
|
21.6
|
|
Fuel Tank
|
L
|
19
|
|
Hydraulic Tank
|
L
|
13
|
|
Engine Oil
|
L
|
1.3-2.8
|
|
Shipping Length
|
mm
|
3575
|
|
Shipping Ground Length
|
mm
|
1895
|
|
Boom Height
|
mm
|
1120
|
|
Shipping Width
|
mm
|
990
|
|
Cab Height
|
mm
|
2347
|
|
Ground Clearance of Counter weight
|
mm
|
438
|
|
Min. Ground Clearance
|
mm
|
150
|
|
Tail Turning Radius
|
mm
|
640
|
|
Wheel Tread
|
mm
|
1230
|
|
Track Length
|
mm
|
1593
|
|
Track Gauge
|
mm
|
760/1050
|
|
Track Shoe Width
|
mm
|
230
|
|
Max. Digging Height
|
mm
|
3540
|
|
Max. Dumping Height
|
mm
|
2440
|
|
Max. Digging Depth
|
mm
|
2310
|
|
Max. Vertical Digging Depth
|
mm
|
1910
|
|
Max. Digging Radius
|
mm
|
3905
|
|
Max. Ground Digging Radius
|
mm
|
3845
|
|
Min. Turning Radius
|
mm
|
1443
|
|
Dozer Blade Lifting Height
|
mm
|
265
|
|
Dozer Blade Falling Height
|
mm
|
175
|
|
Boom Length
|
mm
|
1828
|
|
Arm Length
|
mm
|
950
|
|
Track Section Number(each side)
|
/
|
37
|
|
Track Roller Number
|
/
|
3
|
|
Dozer Blade Height
|
mm
|
258
|
