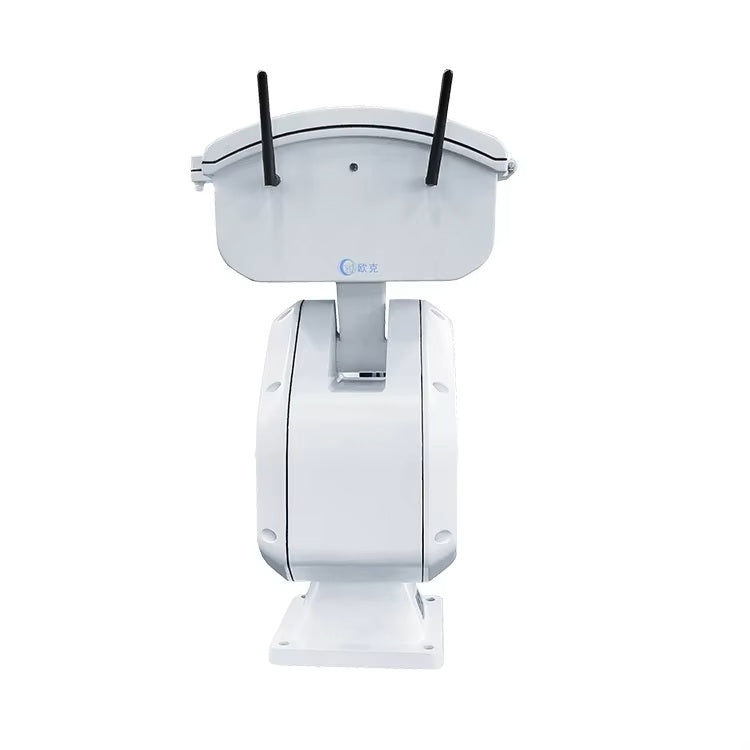

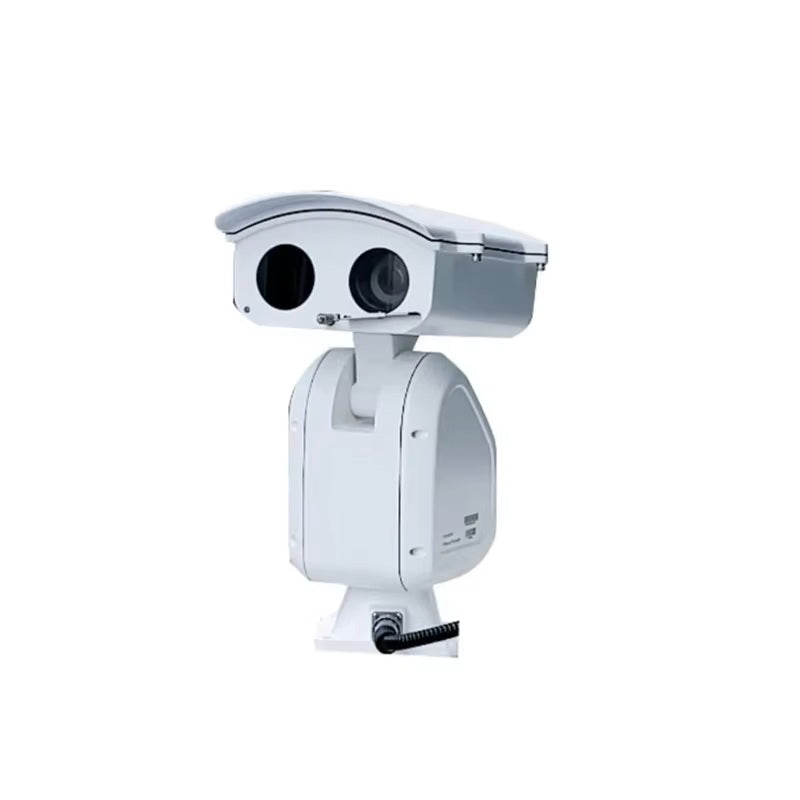

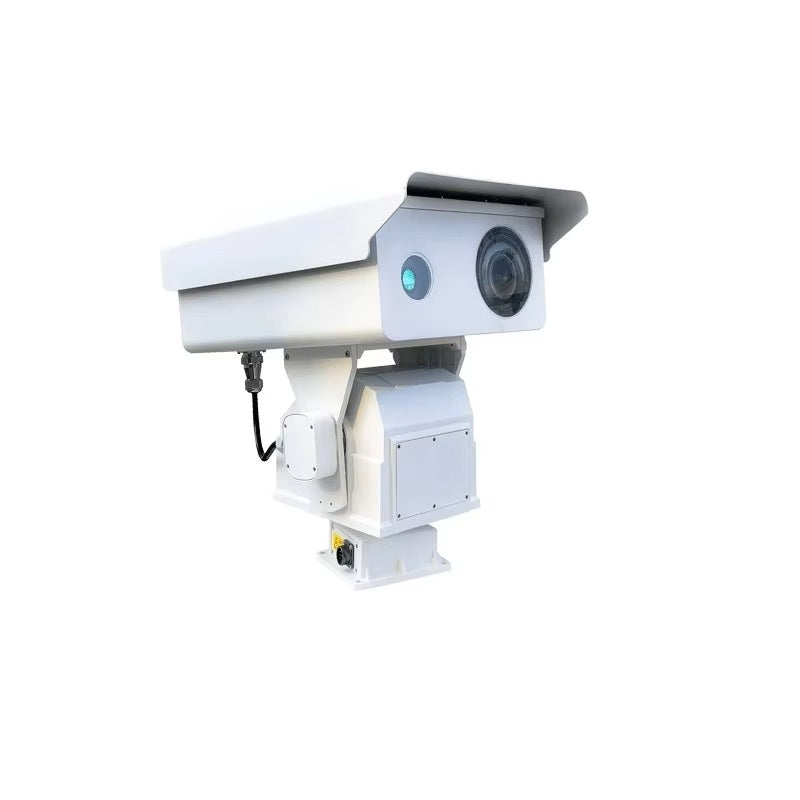

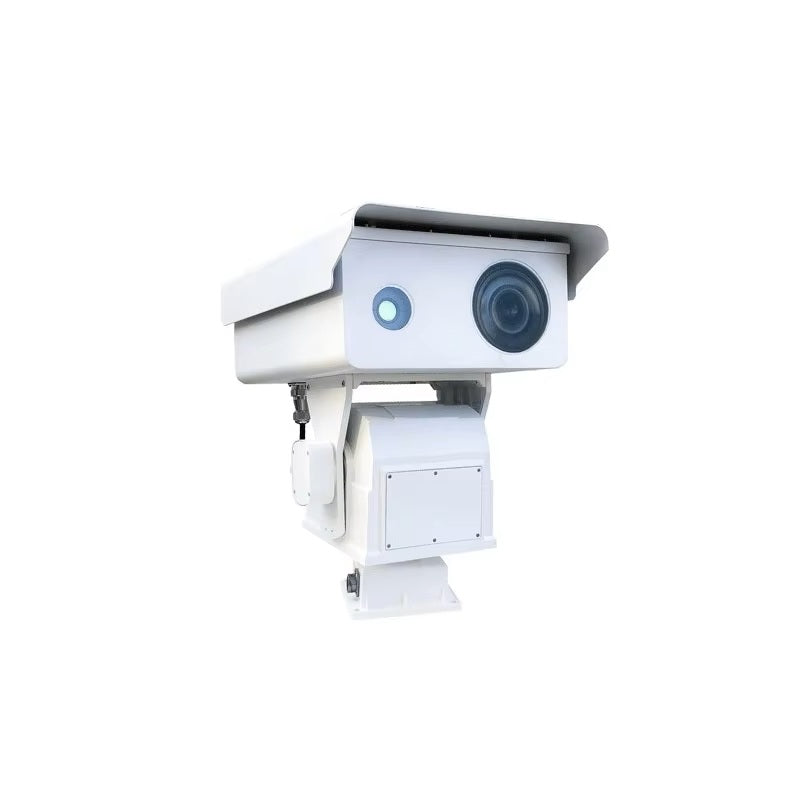

5G/4G Network HD Intelligent Remote Monitoring Heavy-Duty Pan-Tilt Camera Infrared Laser Wireless Remote Laser

Product Model

OK-PJ150GR

Camera and Lens

Lens

X30

X30 Starlight Level

310MMTele

Minimum illumination

Color0.002 lux

black and white0.0002 lux

Color0.001 lux

black and white0.0001 lux

Color0.01 lux

black and white0.001 lux

Imaging device lens

1/2.8"progressive scanCMOS

1/3"progressive scanCMOS

1/2.8"progressive scanCMOS

focal length

f=4.5mm(wide-angle end)

~135mm(Distal)

f=4.6mm(wide-angle end) ~165.6mm(Distal)

f=8mm(wide-angle end) ~310mm(Distal)

wide dynamic

Support

effective pixel

1920(H)×1080(V)

Movement adjustment parameters

White BalanceAWC/ATWAutomatic Gain ControlAGCBacklight compensationBLC

signal-to-noise ratio

52db

Electronic shutter

Automatic; Manual1/1-1/30000s

PTZFunction

Horizontal speed

0.1°~150°/s(belt);0.1°~40°/s(Turbo)

Vertical speed

0.1°~60°/s(belt);0.1°~40°/s(Turbo)

Horizontal angle

360 ° continuous

Vertical Angle

-90°~ 40°

Number of preset bits

255One

Linear line sweep

8Article, scanning speed 8 adjustable

Cruise Scan

8Article, each can set 255 preset points

self-learning

8Article, each recording1024PTZ

Network

video compression

H.265/H.264

Video Frame Rate

25/30fps

Video Resolution

720P/1080P

Network Protocol

TCP,UDP,HTTP,RTP,RTCP,RTSP,FTP,NTP,ICMP,PPP

Lordcode stream

1920×1080 / 1280×720

Substream

720×576 / 352×288 / 176×144

SD Card

Automatic/Manual video recording, support TF card

Audio Coding

G.711

Interface

RS485 control interface

SupportPELCO-P and PELCO-D (can be added) protocols

Network

10/100Mnetwork adaptive,RJ45Adapter

GENERAL SPECIFICATIONS

Temperature

-40 - 70

Humidity

0 ~ 90% (non-condensing)

Protection level

IP66

Weight

17kg

Power

AC24V

Power

90W(Infrared lamp, heater on)
